Macro-benchmark with Django, Flask and AsyncIO (aiohttp.web+API-Hour)

Disclaimer: If you have some bias and/or dislike AsyncIO, please read my previous blog post before starting a war.

Warning: Since I've published this article, my first benchmark published in public, I've received a lot of remarks. Even I've tried to have no errors to be the closest to the "truth", for this benchmark, I've made a mistake: No keepalive for Flask and Django. It's why I've made a second benchmark, and now API-Hour is participating to FrameworkBenchmarks contest, to have the most realistics numbers about theses problematics.
Thanks everybody that helped me to give me all pieces of information to improve my knowledge.
Please to forgive me, first times are always catastrophics, especially in public ;-)

Context of this macro-benchmark

Today, I propose you to benchmark a HTTP daemon based on AsyncIO, and compare results with a Flask and Django version.

For those who didn't follow AsyncIO news, aiohttp.web is a light Web framework based on aiohttp. It's like Flask but with less internal layers.
aiohttp is the implementation of HTTP with AsyncIO.

Moreover, API-Hour helps you to have multiprocess daemons with AsyncIO.
With this tool, we can compare Flask, Django and aiohttp.web in the same conditions.
This benchmark is based on a concrete need of one of our customers: they wanted to have a REST/JSON API to interact with their telephony server, based on Asterisk.
One of the WebServices gives the list of agents with their status. This WebService is heavily used because they use it on their public Website (itself having a serious traffic) to show who is available.

First, I've made a HTTP daemon based on Flask and Gunicorn, which gave honorable results. Later on, I replaced the HTTP part and pushed in production a daemon based on aiohttp.web and API-Hour.
A subset of theses daemons are used for this benchmark.
I've added a Django version because with Django and Flask, I certainly cover 90% of tools used by Python Web developers.

I've tried to have the same parameters for each daemon: for example, I obviously use the same number of workers, 16 in this benchmark.

I don't benchmark Django manage.py or dev HTTP server of Flask, I use Gunicorn, as most people use on production, to try to compare apples with apples.

Hardware

  • Server: A Dell Precision M6800 with i7 2.90GHz and 16 GB of RAM
  • Client: A Dell XPS L502X with i5 2.40GHz and 6GB of RAM
  • Network: RJ45 cable between server and client

Network  benchmark

I've almost 1Gb/s with this network:

On Server:
$ iperf -c 192.168.2.101 -d
------------------------------------------------------------
Server listening on TCP port 5001
TCP window size: 28.6 MByte (default)
------------------------------------------------------------
------------------------------------------------------------
Client connecting to 192.168.2.101, TCP port 5001
TCP window size: 28.6 MByte (default)
------------------------------------------------------------
[  5] local 192.168.2.100 port 24831 connected with 192.168.2.101 port 5001
[  4] local 192.168.2.100 port 5001 connected with 192.168.2.101 port 16316
[ ID] Interval       Transfer     Bandwidth
[  4]  0.0-10.1 sec  1.06 GBytes   903 Mbits/sec
[  5]  0.0-10.1 sec  1.11 GBytes   943 Mbits/sec

On Client:
$ iperf -s
------------------------------------------------------------
Server listening on TCP port 5001
TCP window size: 28.6 MByte (default)
------------------------------------------------------------
[  4] local 192.168.2.101 port 5001 connected with 192.168.2.100 port 24831
------------------------------------------------------------
Client connecting to 192.168.2.100, TCP port 5001
TCP window size: 28.6 MByte (default)
------------------------------------------------------------
[  6] local 192.168.2.101 port 16316 connected with 192.168.2.100 port 5001
[ ID] Interval       Transfer     Bandwidth
[  6]  0.0-10.0 sec  1.06 GBytes   908 Mbits/sec
[  4]  0.0-10.2 sec  1.11 GBytes   927 Mbits/sec


System configuration
It's important to configure your PostgreSQL as a production server.
You need also to configure your Linux kernel to handle a lot of open sockets and some TCP tricks.
Everything is in the benchmark repository.

Client benchmark tool

From my experience with AsyncIO, Apache Benchmark (ab), Siege, Funkload and some old fashion HTTP benchmarks tools don't hit enough for an API-Hour daemon.
For now, I use wrk and wrk2 to benchmark.
wrk hits as fast as possible, where wrk2 hits with the same rate.

Metrics observed

I record three metrics:
  1. Requests/sec: Least interesting of metrics. (see below)
  2. Error rate: Sum of all errors (socket timeout, socket read/write, 5XX errors...)
  3. Reactivity: Certainly the most interesting of the three, it measures the time that our client will actually wait.

WebServices daemons

You can find all source code in API-Hour repository: https://github.com/Eyepea/API-Hour/tree/master/benchmarks
Each daemon has at least two WebServices:
  • /index: It's a simple JSON document
  • /agents: The list of agents that uses, in backend, a SQL query to retrieve agents and status
On Flask daemon, I added /agents_with_pool endpoint, to use a database connection pool with Flask, but it isn't really good, you'll see later.
On Django daemon, I added /agents_with_orm endpoint, to measure the overhead to use Django-ORM instead of to use SQL directly. Warning: I didn't find a solution to have the exact same query.

Methodology

Each daemon will run alone to preserve resources.
Between each run, the daemon is restarted to be sure that previous test doesn't pollute the next one.

First turn

At the beginning, to have an idea how much maximum HTTP queries each daemon can support, I quickly attack (30 seconds) on localhost.

Warning ! This benchmark doesn't represent the reality you can have in production, because you don't have a network limitation nor latency, it's only for calibration.

Simple JSON document

In each daemon folder in benchmarks repository, you can read the output result of each wrk.
To simplify the reading, I summarize the captured values with an array and graphs:


Requests/s Errors Avg Latency (s)
Django+Gunicorn 70598 4489 7.7
Flask+Gunicorn 79598 4433 13.16
aiohttp.web+API-Hour 395847 0 0.03

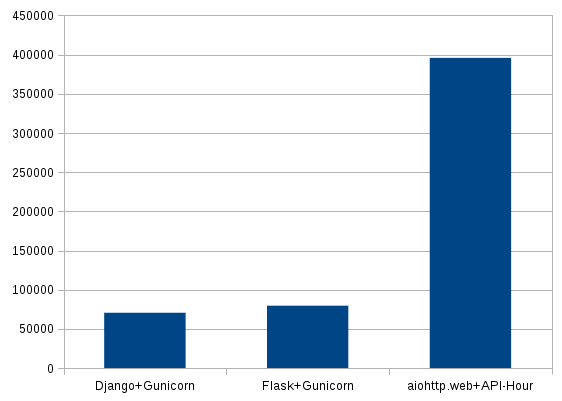

Requests by seconds
(Higher is better)

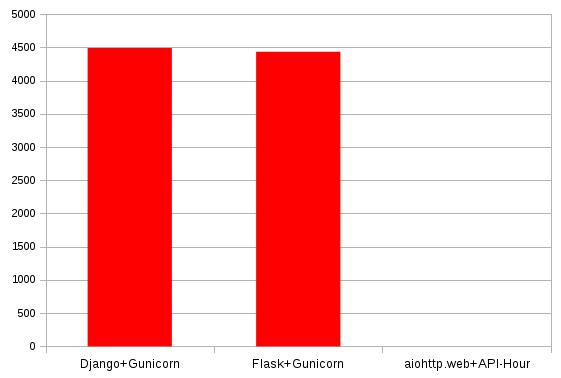

Errors
(Lower is better)

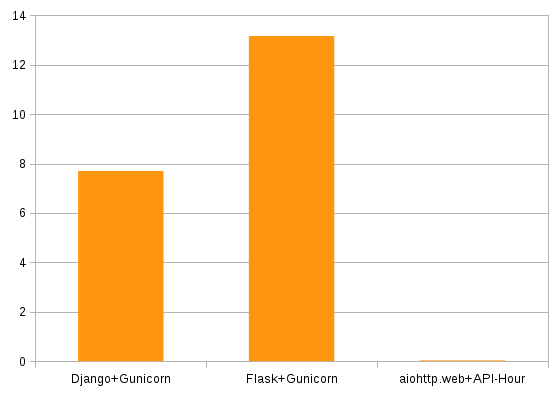

Latency (s)
(Lower is better)

Agents list from database


Requests/s Errors Avg Latency (s)
Django+Gunicorn 583 2518 0.324
Django ORM+Gunicorn 572 2798 0.572
Flask+Gunicorn 634 2985 13.16
Flask (connection pool) 2535 79704 12.09
aiohttp.web+API-Hour 4179 0 0.098

Requests by seconds
(Higher is better)

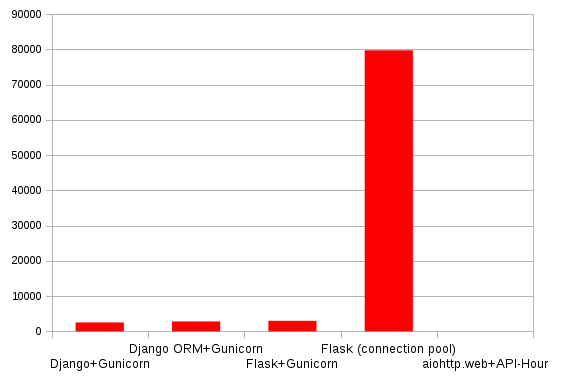

Errors
(Lower is better)

Latency (s)
(Lower is better)


 Conclusions for the next round

On high charge, Django doesn't have the same behaviour as Flask: Both handle more or less the same requests rate, but Django penalizes less global latency of HTTP queries. The drawback is that the slow HTTP queries are very slow (26,43s for Django compared to 13,31s for Flask).
I removed Django ORM test for the next round because it isn't exactly the same SQL query generated and the performance difference with a SQL query is negligible.
I removed also Flask DB connection pool because the error rate is too important compared to other tests.

Second round

Here, I use wrk2, and changed the run time to 5 minutes.
A longer run time is very important because of how resources availability can change with time.
There are at least two reasons for this:

1. Your test environment runs  on top of some OS which continues its activity during the test.
Therefore, you need a long time to be more insensitive to transient use of your test machine resources by other things
like another OS daemon or cron job triggering meanwhile.

2. The ramp-up of your test will gradually consume more resources at different levels: at the level of your Python scripts & libs,
 as well as at the level of you OS / (Virtual) Machine.
This decrease of available resources will not necessarily be instantaneous, nor linear.
This is a typical source of after-deployment bad surprises in prod.
Here too, to be as close as possible to production scenario, you need to give time to your test to arrive to a "hover", eventually saturating some resources.
Ideally you'd saturate the network first (which in this case is like winning the jackpot).

Here, I'm testing at a constant 4000 queries per second, this time through the network.

Simple JSON document


Requests/s Errors Avg Latency (s)
Django+Gunicorn 1799 26883 97
Flask+Gunicorn 2714 26742 52
aiohttp.web+API-Hour 3995 0 0.002

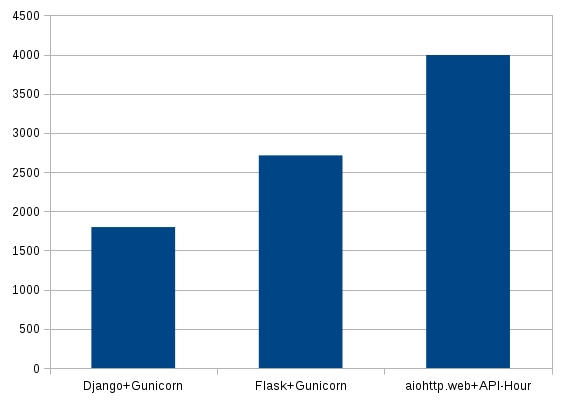

Requests by seconds
(Higher is better)

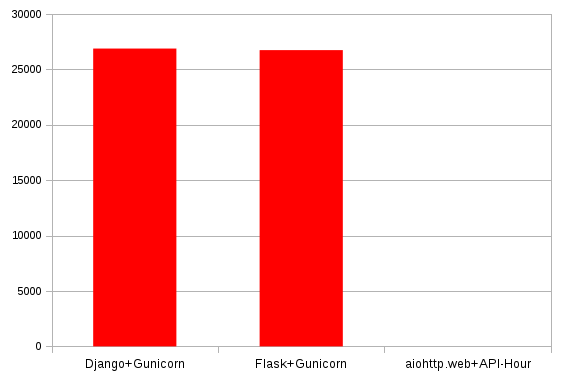

Errors
(Lower is better)

Latency (s)
(Lower is better)

Agents list from database


Requests/s Errors Avg Latency (s)
Django+Gunicorn 278 37480 141.6
Flask+Gunicorn 304 40951 136.8
aiohttp.web+API-Hour 3698 0 7.84

Requests by seconds
(Higher is better)

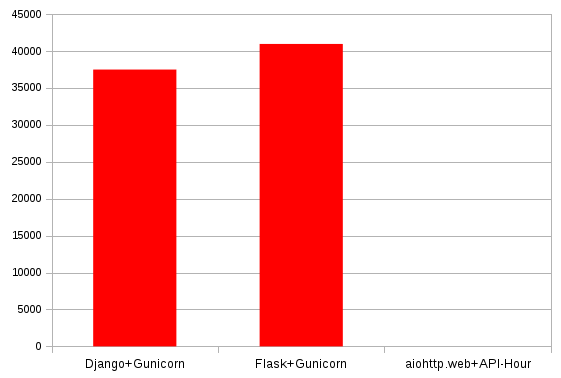

Errors
(Lower is better)

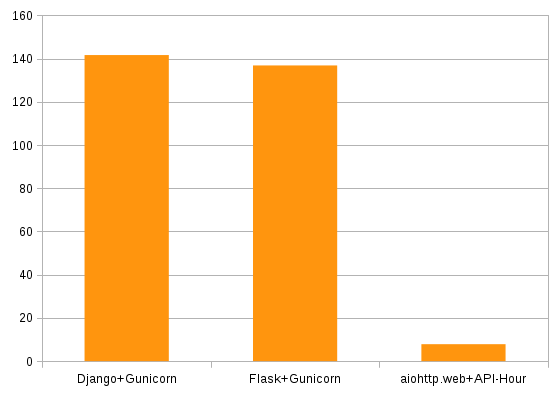

Latency (s)
(Lower is better)

(Extra) Third round

For the fun, I used the same setup as second round, but with only with 10 requests/seconds during 30 seconds to see if under a low load, sync daemons could be quicker, because you have the AsyncIO overhead.

Agents list from database


Requests/s Errors Avg Latency (s)
Django+Gunicorn 10 0 0.01936
Flask+Gunicorn 10 0 0.01874
aiohttp.web+API-Hour 10 0 0.00642

Latency (s)
(Lower is better)

Conclusion

AsyncIO with aiohttp.web and API-Hour increases the number of requests per second, but more importantly, you have no sockets nor 5XX errors and the waiting time for each user is very really better, even with low load. This benchmark uses an ideal network setup, and therefore it doesn't cover a much worse scenario where your client arrives over a slow network (think smartphone users) on your Website.

It has been said often: If your webapp is your business, reduce waiting time is a key winner for you:

Some clues to improve AsyncIO performances

Even if this looks like good performance, we shouldn't rest on our laurels, we can certainly find more optimizations:

  1. Use an alternative event loop: I've tested to replace AsyncIO event loop and network layer by aiouv and quamash. For now, it doesn't really have a huge impact, maybe in the future.
  2. Have multiplex protocols from frontend to backend: HTTP 2 is now a multiplex protocol, it means you can stack several HTTP queries without waiting for the first response. This pattern should increase AsyncIO performances, but it must be validated by a benchmark.
  3. If you have another idea, don't hesitate to post it in comments.

Don't take architectural decisions based on micro-benchmarks

It's important to be very cautious with benchmarks, especially with micro-benchmarks. Check several different benchmarks, using different scenari, before to conclude on architecture for your application.

Don't forget this is all about IO-bound

If I was working for an organisation with a lot of CPU-bound projects, (such as a scientific organisation for example), my speech would be totally different.
But, my day-to-day challenges are more about I/O than about CPU, probably like for most Web developers.

Don't simply take me as a mentor. The needs and problematics of one person or organisation are not necessarily the same as your, even if that person is considered as a "guru" in one opensource community or another.

We should all try to keep a rational, scientific approach instead of religious approach when selecting your tools.
I hope this post will give you some ideas to experiment with. Feel free to share your tips to increase performances, I'd be glad to include them in my benchmarks!

I hope that these benchmarks will be an eye-opener for you.

Open letter for the sync world

Theses days, I've seen more and more haters about the async community in Python, especially around AsyncIO.
I think this is sad and counter-productive.
I feel that for some people, frustrations or misunderstandings about the place of this new tool might be the cause, so I'd like to share some of my thoughts about it.


Just a proven pattern, not a "who has the biggest d*" contest


Some micro-benchmarks have been published to try to explain that AsyncIO isn't really efficient.
We all know that it is possible to have benchmarks prove about anything, and that the world isn't black or white.
So just for the sake of completeness, here are some macro-benchmarks based on Web applications examples: http://blog.gmludo.eu/2015/02/macro-benchmark-with-django-flask-and-asyncio.html


Now, before starting a ping-pong to try to determine who has the biggest, please read further:

Asynchronous/coroutine pattern isn't a new fancy stuff to decrease developer productivity and performance.
In fact, the idea of asynchrounous, non-blocking IO has been around in many OSes and programming languages for years.
In Linux for example, Asynchronous I/O Support was added to kernel 2.5, back in 2003, you can even find some specifications back in 1997 (http://pubs.opengroup.org/onlinepubs/007908799/xsh/aio.h.html)
It started to gain more visibility with (amongst others) NodeJS a couple of years ago.
This pattern is now included in most new languages (Go...) and is made available in older languages (Python, C#...).

Async isn't a silver bullet, especially for intensive calculations, but for I/O, at least from my experience, it seems to be much more efficient.


The lengthy but successful maturation process of a new standard


In the Python world, a number of alternatives were available (Gevent, Twisted, Eventlet, libevent, stackless,...) each with their own strengths and weaknesses.
Each of them went to a maturation process and could eventually be used on real production environments.

It was really clever for Guido to take all good ideas from all these async frameworks to create AsyncIO.
Instead of having a number of different frameworks, each of them reinventing the wheel on an island,
AsyncIO should help to have a "lingua franca" for doing async in Python.
This is pretty important because once you enter in the async world, all your usual tools and libs (like your favourite DB lib) should also be async compliant.
Because, AsyncIO isn't just a library, it will become the "standard" way to write async code with Python.


If Async means rewriting my perfectly working code, why should I bother ?


To integrate cleanly AsyncIO in your library or your application, you have to rethink the internal architecture.
When you start a new project in "async mode", you can't keep sync for the part of it: to get all async benefits, everything should be async.

But, this isn't mandatory from day 1: you can start simple, and port your code to the async pattern step-by-step.

I can understand some haters reactions: Internet is a big swarm where you have a lot of trends and hype.
Finally, few tools and patterns will really survive to the production's fire.
Meanwhile, you already wrote a lot of perfectly working code, and obviously you really don't want to rewrite that just for the promises of the latest buzz-word.

It's like oriented object programming, years ago, it suddenly became the new "proper" way of writing your code (some said),
and you couldn't be object and procedural in the same time.
Years later, procedural isn't completely dead, because in fact, OO sometimes brings unnecessary overhead.
It really depends on what sort of things you are writing (size matters!).
On the other hand, in 2015, who writes a full-Monty application with procedural only ?

I think one day, it will be the same for the async pattern.
It is always better to driving the change than to endure the change.
Think organic: on the long term, it is not the strongest that survives, nor is it the most intelligent.
It is usually the one being most open and adaptive to changes.


Buzzword, or real paradigm change ?


We don't know for sure if the async pattern is only a temporary fashion buzzword or a real paradigm shift in IT,  just like virtualization has become a de-facto standard over the last few years.

But my feeling is that it is here to stay, even if it won't be relevant for all Python projects.
I think it will become the right way to build efficient and scalable I/O-Bound projects,

For example, in an Internet (network) driven world, I see more and more projects centred around piping between cloud-based services.
For this type of developments, I'm personally convinced a paradigm shift has become unavoidable, and for Pythonists AsyncIO is probably the right horse to bet on.



Does anyone really care or "will I be paid more" ?


Let's face it, beside your geek fellows, nobody cares about the tools you are using:
Your users just want features for yesterday, as few bugs as possible, and they want their application to be fast and responsive.
Who cares if you use async, or some other hoodoo-voodoo-black-magic to reach the goal ?

I think that, by starting a "religious war" between sync and async Python developers, we would all waste our (precious) time.
Instead, we should cultivate emulation between Pythonistas, build solutions to increase real-world performances and stability.
Then let Darwin show us the long term path and adapt to it.

In the end, the whole Python community will benefit if Python is considered as a great language to write business logic with ease AND with brute performance.
We are all tired to hear people in other communities say that Python is slow, we are all convinced this is simply not true.

This is a communication war that the Python community has to win as a team.

PS: Special thanks to Nicolas Stein, aka. Nike, for the review of this text and his precious advices in general to stimulate a scientific approach of problems.

Thursday 19 February 2015

Welcome to my blog !

Hi,

I'm Ludovic Gasc, I'm working at Eyepea/ALLOcloud company as telco dev guy.
I use Python to build scalable end-user applications for clients.

I'm also the creator of API-Hour to write efficient network daemons (HTTP, SSH...) with ease.

I'll publish articles based on my experimentations and production feedbacks around this problematic.

Stay tuned, several articles coming soon.
